How to adjust the timing from reset release to TOOL0 rise in FRX850, FRX852, FRX853.

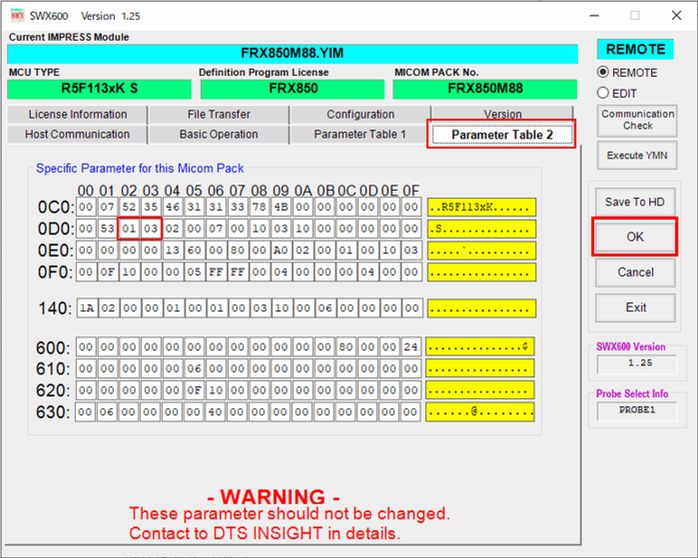

You can adjust the time between reset rising and TOOL0 rising by changing the values of addresses D2 to D3 in Parameter Table 2.
Upper 12 bits: radix
Lower 4 bits: Exponent
Setting unit: us
0053: 5 x 10 ^ 3 (us) = 5ms
0024: 2 x 10 ^ 4 (us) = 20ms
* Initial communication (Mode Info, Baudrate Com) must be completed within 100ms, so if the value is set too large, it will not work.
Upper 12 bits: radix
Lower 4 bits: Exponent
Setting unit: us
0024: 2 x 10 ^ 4 (us) = 20ms
* Initial communication (Mode Info, Baudrate Com) must be completed within 100ms, so if the value is set too large, it will not work.
