RAMScope Case Study

GT170 series
Use Cases

RAMScope has received a request from inverter / motor application development (HEV development), and a noise-resistant "high-speed software variable (RAM) measurement tool" was born.This tool is sold as standard under the product name "RAMScope".After that, "RAMScope" has been widely used for automotive control applications, consumer and industrial equipment.
Below are some of the use cases.

Gasoline Engine System

Verification with 100 times the fineness of CAN tools

BLDC Motor Control

Visualization of vector control, capturing motor changes in control cycle

Battery Management System

Multi-channel (battery and cell management information), long-time recording of gradual changes in multi-stage batteries

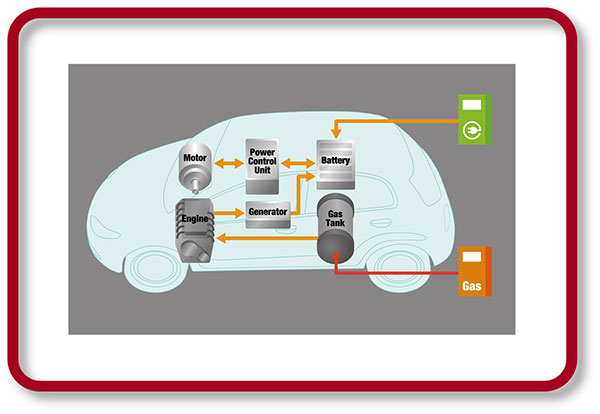

Hybrid Electric Vehicle

System verification of coordinated control of multiple ECUs by synchronous measurement

ADAS Applications

Measurement and recording of a large number of variable channels of vehicle information, CAN bus measurement synchronization of vehicle control

Central Gateway Control

Synchronous measurement of multi-channel CAN/CAN FD to solve the complicated GW problem of automotive network

Multi-Axis Motor Control

RAMScope solves high performance microcontroller control verification that coordinates control between shaft motors

Embedded AI

e-AI solution for failure detection of motor-equipped home appliances
