ADAS Applications：Predictive Analytics,Decision Making,Verification of Actual Vehicle Control

Real-time multi-point measurement and long-time recording of control variables such as objects in the forward direction, boundary detection, measurement of distance and speed sensing information, and status, decision results, and control signals for vehicle control applications are possible.

The latest vehicles for safe driving are ACC (Adaptive Cruise Control),emergency braking,Lane departure prevention/warning, etc,The vehicle is controlled based on a large amount of sensing information from cameras, radar, and other sources that monitor the road ahead.
The ADAS-ECU analyzes and predicts the sensing information, and the vehicle integrated control ECU makes recognition and operation decisions and performs some driving operations.Advanced driving assistace functions are realized by coordinating sensing and control technologies.

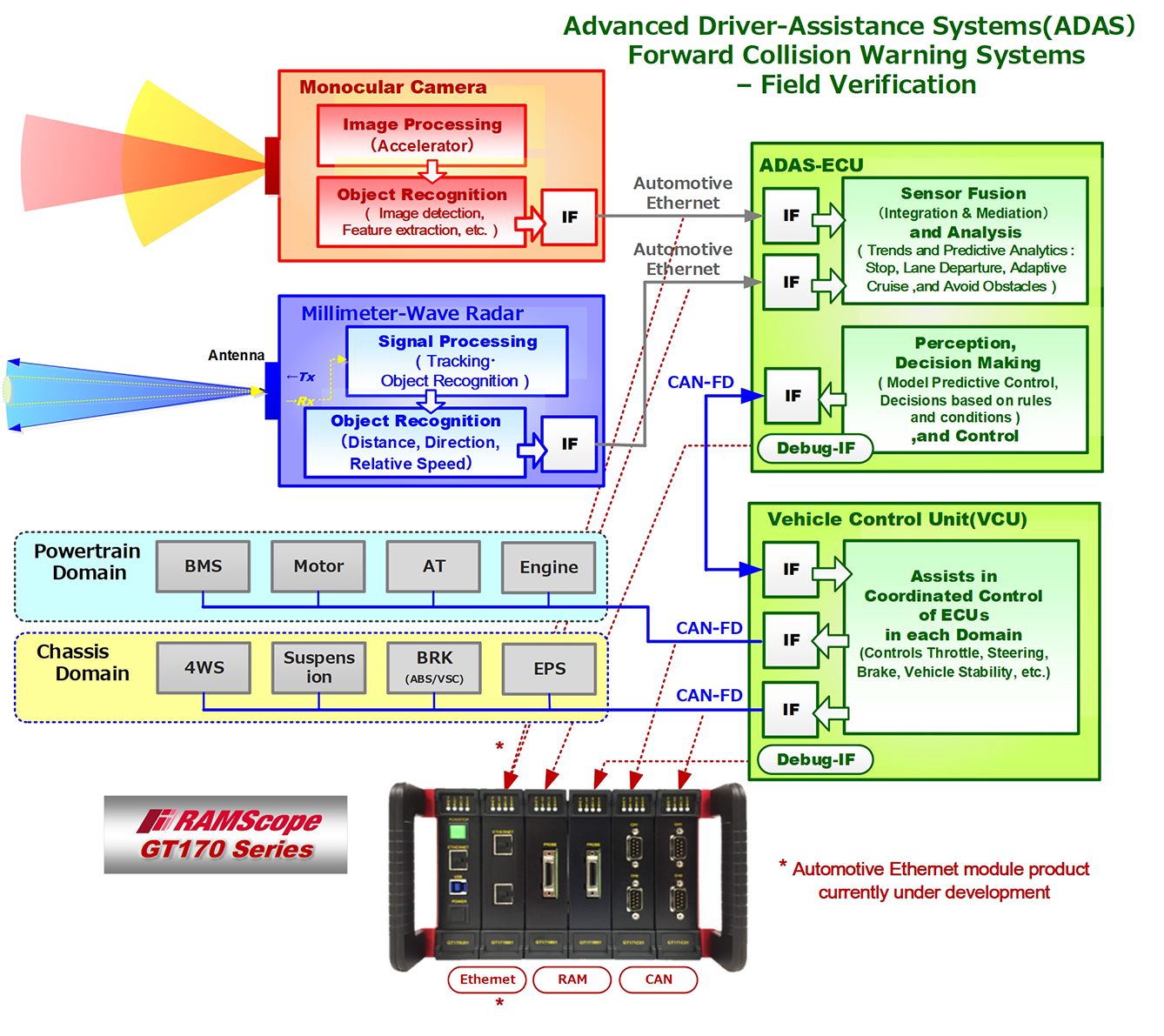

The figure on the right shows introduce of ECU measurement of driving and coordinated control by a vehicle integrated control ECU using RAMScope.
RAMScope-EXG (GT170 Series) is,It can measure internal variables of ADAS-ECU such as cognition and operation judgment, and internal variables of integrated vehicle control at multiple points (up to 2,048 points) and for long periods of time.
The internal variable logs of the ADAS-ECU and CAN communications for vehicle control of the chassis and powertrain can also be measured simultaneously, enabling validation of cooperative control based on data analysis after logging.
