How to change the reset control after writing in FRX840.

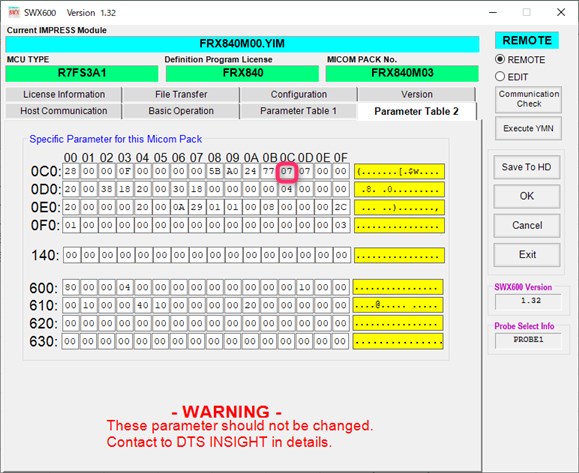

The reset (/TRES) control after completion of writing can be changed by changing the value of 0CC address in Parameter Table 2.

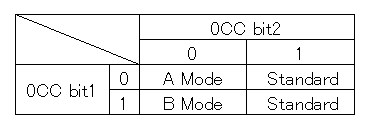

address 0CC：bit 2,1 □□□□□■■□
A Mode：It ends with Hi-Z. The flash writing mode is continued and the user application does not operate
B Mode：After the device function is completed, assert reset for a certain period (100ms) to operate the user application
Standard：Low output after completion of writing
*Since you will be prompted to enter a password when accessing the screen of Parameter Table 2, please input "AF200".
*When changing the setting value on the screen of Parameter Table 2, please press the [OK] button at the right end of the screen to reflect the set value on the programmer.
address 0CC：bit 2,1 □□□□□■■□
A Mode：It ends with Hi-Z. The flash writing mode is continued and the user application does not operate
B Mode：After the device function is completed, assert reset for a certain period (100ms) to operate the user application
Standard：Low output after completion of writing
*Since you will be prompted to enter a password when accessing the screen of Parameter Table 2, please input "AF200".
*When changing the setting value on the screen of Parameter Table 2, please press the [OK] button at the right end of the screen to reflect the set value on the programmer.
update date：2024/03/26
