Product Specification

System Example

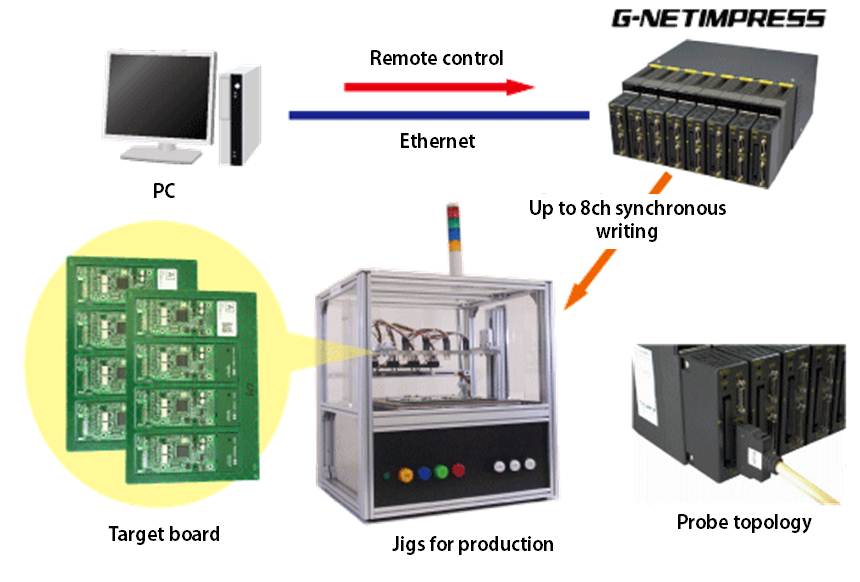

System Example

G-NETIMPRESS Product Configuration

G-NETIMPRESS Product Configuration

Model Product image Specification

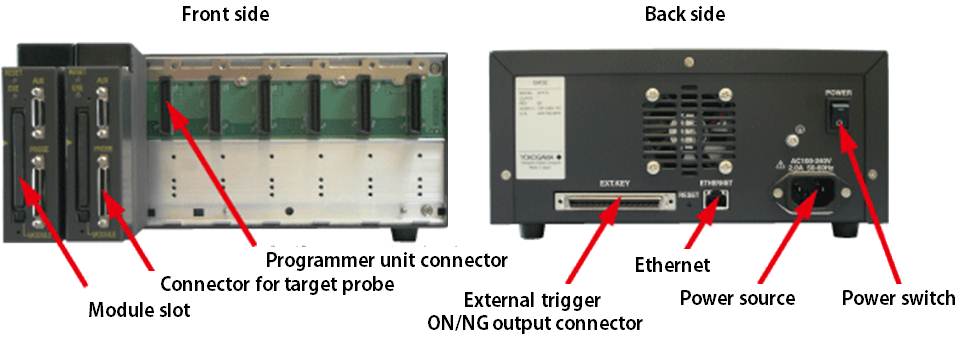

AF710 AF710
  • G-NETIMPRESS base unit
    • Up to eight AF720 programmer units can be connected
    • 100BASE-TX host interface external trigger / ON/NG output connector

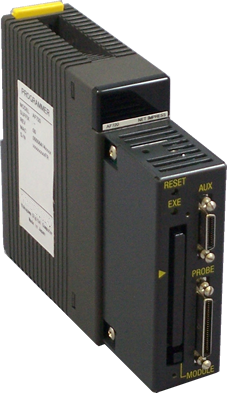

AF720 AF720
  • G-NETIMPRESS programmer unit
    • Compact module slot
    • Target probe connector

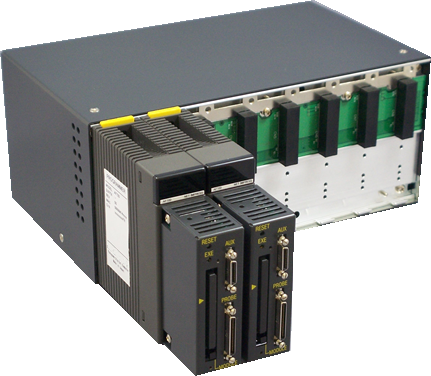

AF700 AF700
  • Package of AF710 and AF720 (2 units)

Specifications

1. Communication to target system

(1) UART：2400,4800,9600,19200,31250,38400,57600,62500,76800bps
(2) CSI：62.5K,125K,250K,500K,850K,1.25M,2.5M,3.3M,5Mbps
AZ210: AF200 , NET IMPRESS

2. Target system condition

(1) Power supply voltage range: 3V±10% to 5V±5%

Target Probe

AZ710 standard target probe
(with connectors at both ends)

AZ710 standard target probe

Cable length: 1 m
Connector: DX10-28S (Hirose)

Probe for AZ712 and AZ710
with the target side untreated

Probe for AZ712 and AZ710

Probe for AZ413/GI and AZ411/GI
with the target side untreated

Probe for AZ413/GI and AZ411/GI
