OS/Platform Supporting
Linux
A debug environment of a kernel, application, bootloader, module, shared library, etc. is realized without manipulating the Kernel source.
Debug functions
- Process list
- The process ID/name and status information are displayed and the current process information is displayed at the time of target break.
- PID selection
- You can specify only processes you want to debug
- Virtual mode
- You can display statuses other than the current process in a multitask/multithread environment.
uITRON T-Kernel
Debug function

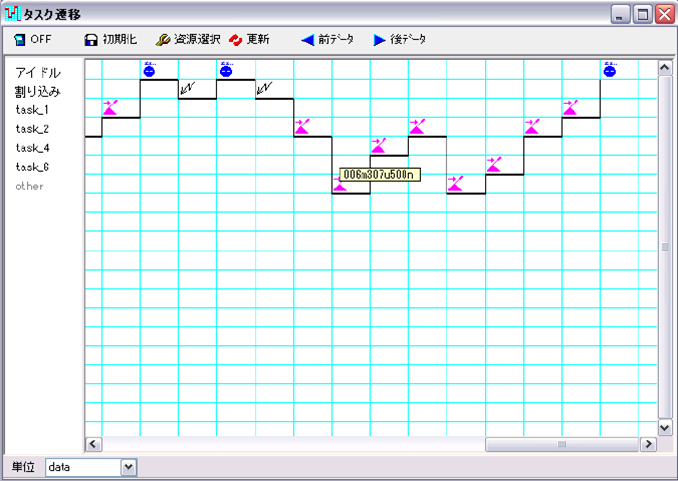

- Task transition display
- Task switching is displayed graphically with a time stamp, without stopping the target. The resource information managed by the OS is displayed in a list.

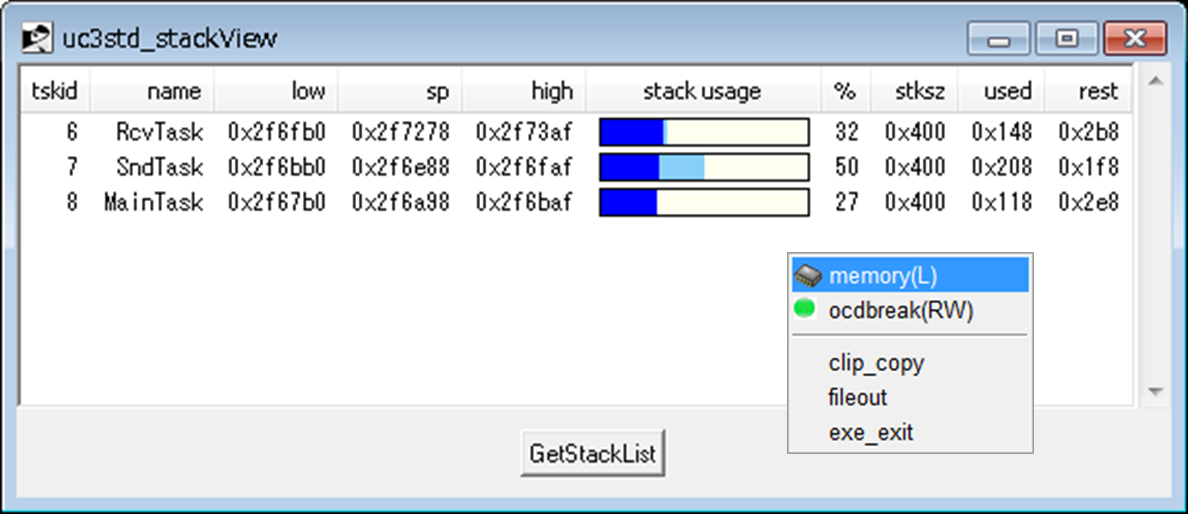

- OS resource display
- You can add or delete the display contents by customizing GUI with use of Tcl/Tk
